Príslušenstvo ku kondenzačným jednotkám

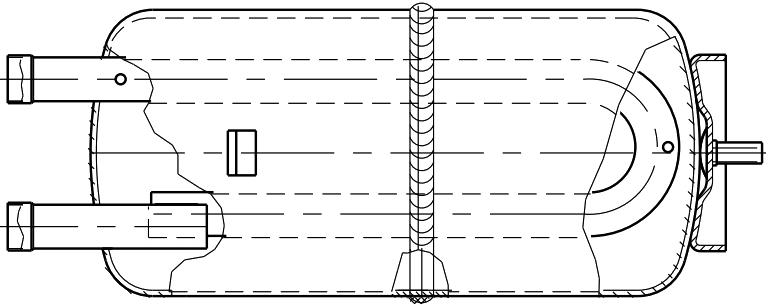

Odlučovače chladiva LT
Odlučovače chladiva FrigoMec



Typ Objem  Prípoj Obj. číslo
DTN
[L] [mm]
LTR-2407 - 22/16 193.40.1000
LTR-2411 - 28/16 193.40.1005
LTR-2413 - 35/18 193.40.1010
LTR-2415 - 42/22 193.40.1015
Typ Objem  Prípoj Obj. číslo
DTN
[L] [mm]
06/S-S 4,6 12/22 193.31.1000
07/S-S 5,6 16/28 193.31.1005
08/S-S 7,8 16/35 193.31.1010
09/S-S 11,0 18/42 193.31.1015
10/S-S 19,0 22/54 193.31.1020







Zberače chladiva

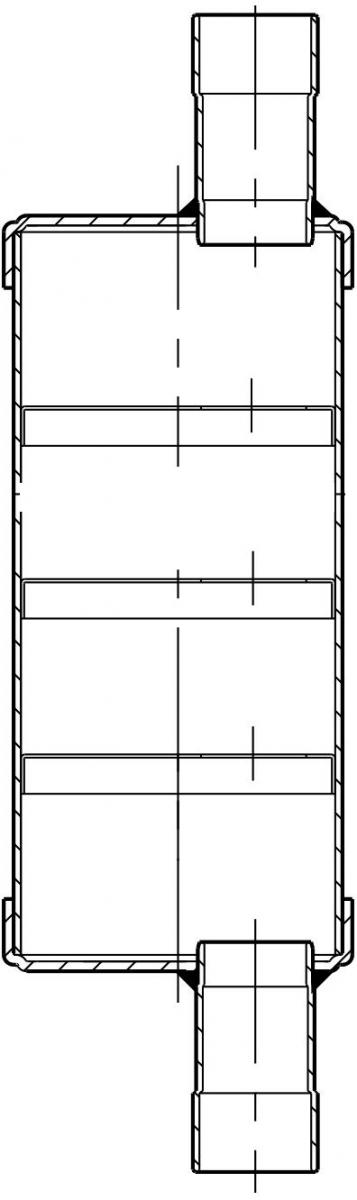

Tlmiče hluku



Typ Objem  Prípoj Obj. číslo
DTN
[L] [mm/"]
RV-100x224 1,5 10 / 1" 191.31.1000
RV-120x250 2,3 10 / 1" 191.31.1005
RV-140x337 4,6 12 / 1" 191.31.1010
RV-130x344 5,6 12 / 1" 191.31.9000
RV-200x317 7,6 16 / 1" 191.31.1015
RV-220x367 11,0 16 / 1" 191.31.1025
RV-220x427 13,0 22 / 1-1/4" 191.31.1030
RV-260x388 16,0 22 / 1-1/4" 191.31.1035
RV-260x488 19,0 22 / 1-1/4" 191.31.1040
RV-300x536 30,0 35 / 1-1/3" 191.31.1050
Typ Objem  Prípoj Obj. číslo
DTN
[L] [mm]
SLT-76/22 0,65 22 194.31.1000
SLT-76/28 0,65 28 194.31.1005
SLT-100/35 1,60 35 194.31.1010
SLT-76/18 0,53 18 194.31.1015



Vibračné hadice
Rotalock ventily



Typ Dĺžka Prípoj Obj. číslo
DTN
[mm] [mm]
VTG010 230 10 335.86.1000
VTG012 230 12 335.86.1005
VTG016 255 16 335.86.1010
VTG018 255 18 335.86.1015
VTG022 290 22 335.86.1020
VTG028 330 28 335.86.1025
VTG035 375 35 335.86.1030
VTG042 430 42 335.86.1035
VTG054 510 54 335.86.1040
VTG064 690 64 335.86.1045
VTG076 690 76 335.86.1050
Typ Závit Prípoj Obj. číslo
DTN
["] [mm]
10 mm / 3/4" 3/4" 10 206.31.1000
10 mm / 1" 1" 10 206.31.1005
12 mm / 1" 1" 12 206.31.1010
16 mm / 1" 1" 16 206.31.1015
18 mm / 1" 1" 18 206.31.1020
12 mm / 1-1/4" 1-1/4" 12 206.31.1025
16 mm / 1-1/4" 1-1/4" 16 206.31.1030
18 mm / 1-1/4" 1-1/4" 18 206.31.1035
22 mm / 1-1/4" 1-1/4" 22 206.31.1040
28 mm / 1-1/4" 1-1/4" 28 206.31.1045
22 mm / 1-3/4" 1-3/4" 22 206.31.1050
28 mm / 1-3/4" 1-3/4" 28 206.31.1055
35 mm / 1-3/4" 1-3/4" 35 206.31.1060
42 mm / 1-3/4" 1-3/4" 42 206.31.1065
42 mm / 2-1/4" 2-1/4" 42 206.31.1070

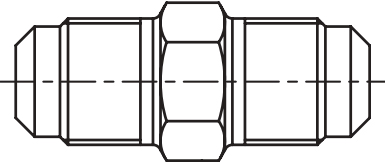

Spojky na prevlečné matice - priame

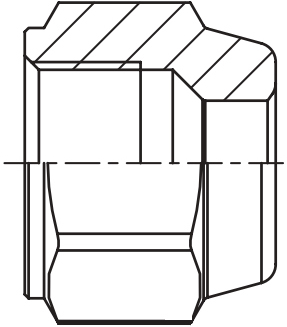

Prevlečné matice



Typ Závit Obj. číslo
DTN
["]
UN-4 1/4" 332.40.1000
UN-6 3/8" 332.40.1005
UN-8 1/2" 332.40.1010
UN-10 5/8" 332.40.1015
UN-12 3/4" 332.40.1020
Typ Závit Priemer potrubia Obj. číslo
DTN
["] [mm]
6 x 1/4" 1/4" 6 332.14.1000
6 x 3/8" 3/8" 6 332.14.1005
10 x 3/8" 3/8" 10 332.14.1015
10 x 1/2" 1/2" 10 332.14.1020
12 x 1/2" 1/2" 12 332.14.1025
12 x 5/8" 5/8" 12 332.14.1070
16 x 5/8" 5/8" 16 332.14.1030
16 x 3/4" 3/4" 16 332.14.1075
18 x 3/4" 3/4" 18 332.14.1035

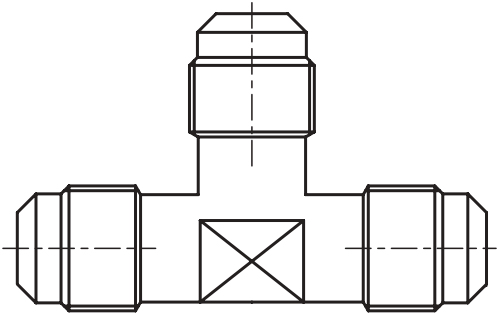

Spojky na prevlečné matice - typu "T"

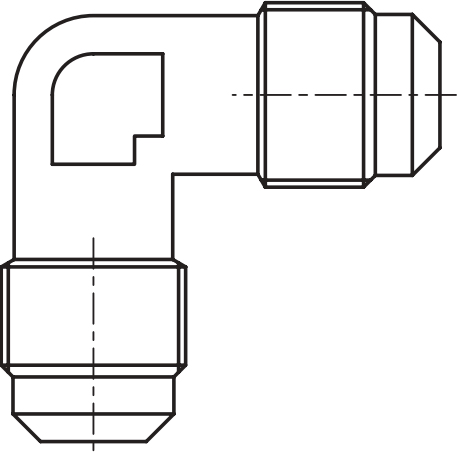

Spojky na prevlečné matice - rohové



Typ Závit Obj. číslo
DTN
["]
UT-4 1/4" 332.40.1100
UT-6 3/8" 332.40.1105
UT-8 1/2" 332.40.1110
UT-10 5/8" 332.40.1115
Typ Závit Obj. číslo
DTN
["]
UE-4 1/4" 332.40.1200
UE-8 1/2" 332.40.1210
UE-10 5/8" 332.40.1215











Kapiláry
Prepojovacie kapiláry



Typ Dĺžka
v balení
Priemer vnút/vonk Obj. číslo
DTN
[m] [mm]
TC-26 30 0,7/1,9 323.46.1000
TC-31 30 0,8/2,0 323.46.1005
TC-36 30 0,9/2,1 323.46.1010
TC-42 30 1,0/2,2 323.46.1015
TC-44 30 1,1/2,3 323.46.1055
TC-49 30 1,25/2,45 323.46.1020
TC-50 30 1,3/2,5 323.46.1060
TC-55 30 1,4/2,6 323.46.1025
TC-59 30 1,5/2,7 323.46.1030
TC-64 30 1,6/2,8 323.46.1035
TC-70 30 1,8/3,0 323.46.1040
TC-75 30 1,9/3,1 323.46.1060
TC-80 30 2,0/3,2 323.46.1045
TC-90 30 2,3/3,5 323.46.1050
Typ Dĺžka Ihla Obj. číslo
DTN
[m]
MG-10 1,0 nie 323.40.1000
MG-15 1,5 nie 323.40.1005
K-06 0,6 áno 323.14.1004
K-10 1,0 áno 323.14.1005
K-15 1,5 áno 323.14.1010

















Teflónové tesnenia pre rotalocky
Plniace ventily



Typ Závit Obj. číslo
DTN
["]
3/4" 3/4" 206.31.1500
1" 1" 206.31.1505
1-1/4" 1-1/4" 206.31.1510
1-3/4" 1-3/4" 206.31.1515
2-1/4" 2-1/4" 206.31.1520
Typ Závit Priemer potrubia Obj. číslo
DTN
["] [mm]
s trubkou 1/4" 6 332.14.4005
bez trubky 1/4" 6 332.14.4000









Pasta na pertle
Medené tesnenia



Typ Obj. číslo
DTN
TRU-BLU 477.99.1285
Typ Obj. číslo
DTN
1/4" 332.53.8000
1/2" 332.53.8010
